6" Heated NightDriver Series Double Row ECE LED Light Bar (Pair) - N236EM-HL-2
|
NightRider LEDS – Heated NightDriver Series – ECE E-Mark Certified |
|
|
Part # |
N236EM-HL-2 (Pair) |
|
Watts |
36W (per light) |
|
Lumens |
4,320lm (per light) |
|
IP Rating |
IP67 |
|
Beam |
ECE Certified R112 Auxiliary Driving Beam Combo Flood and Spot Beam Pattern |
|
LED Chip Type |
5W OSRAM |
|
LEDS |
12 (per light) |
|

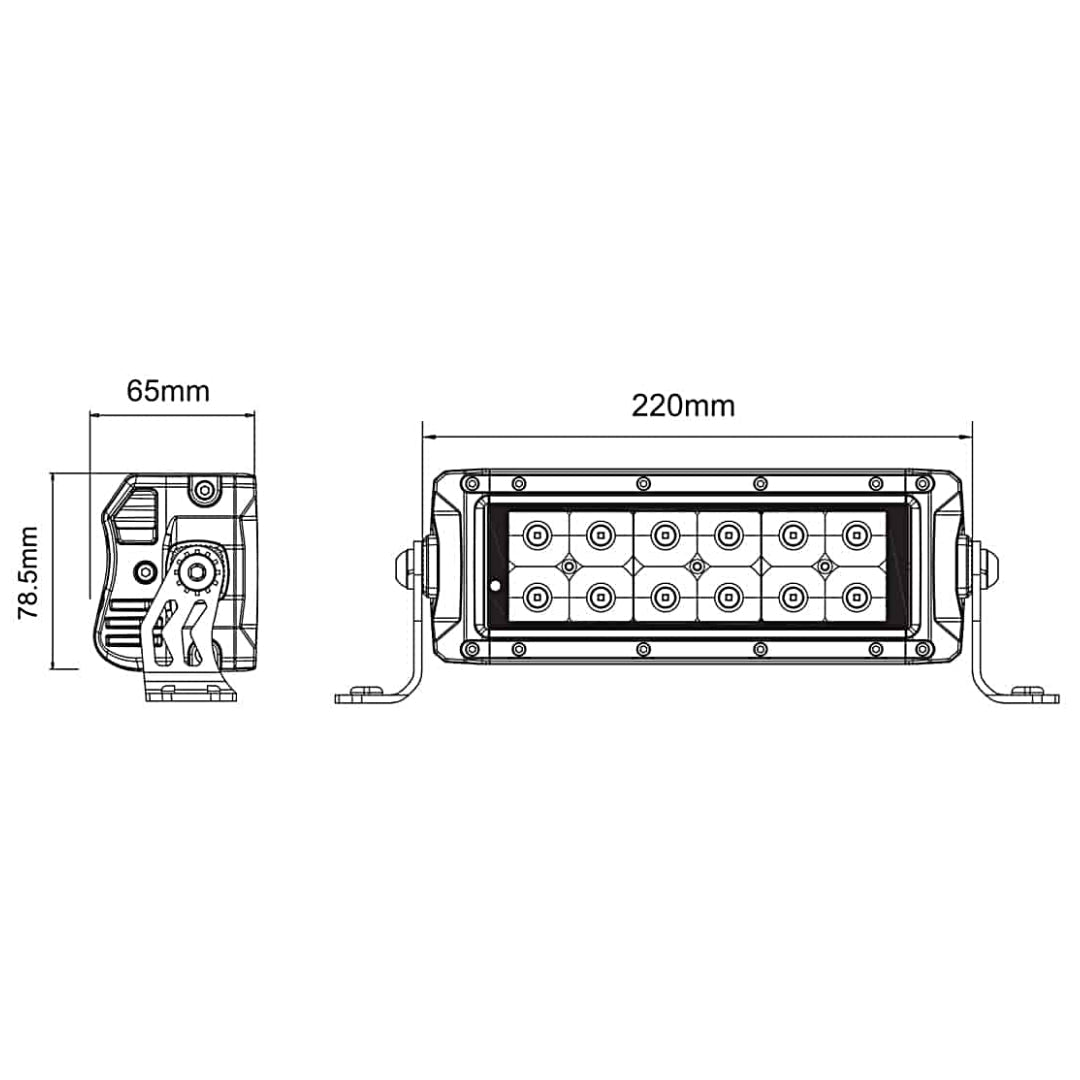

Dimensions |
65mm D x 220mm L x 79mm H |
|
Operating Voltage Range |
10-30V DC |
|
AMP Draw @ 12 V |
3.0A (per light) |
|
LED Life |
30,000 hrs + |
|
Self Heated Lens Prevents Build Up of Ice and Snow. Perfect for Winter |
|
|
How It Works – Equipped with an Internal Temperature Sensor. Programmed to Activate Heating Function When the Light’s Internal Temperature is at or Below 20° C. Heating Will Reduce When Internal Temperature Reaches 30° C and Stop When Internal Temperature Reaches 40° C. Heated Function Works Completely Automatically, No Need For Additional Wiring or Switches. |
|
|

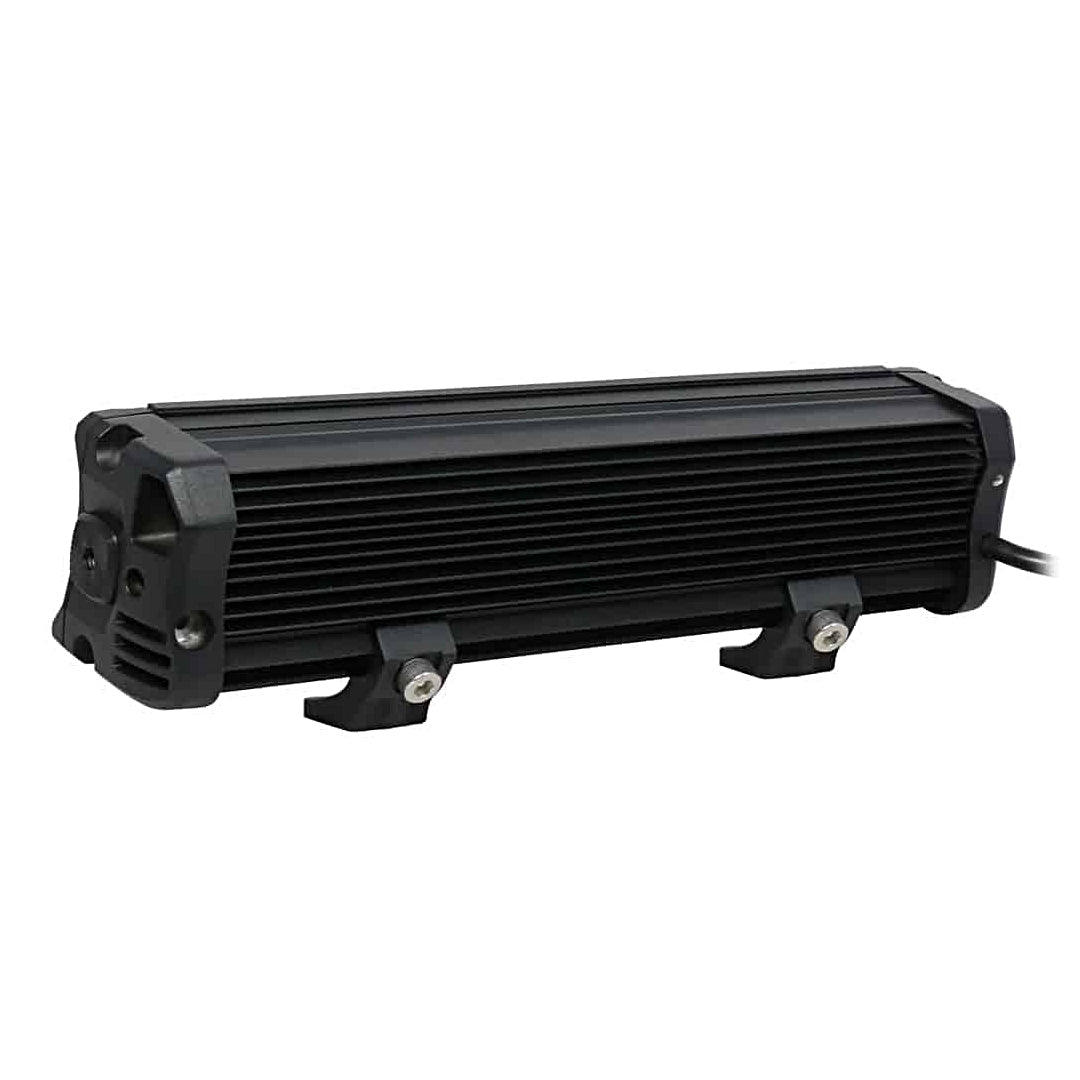

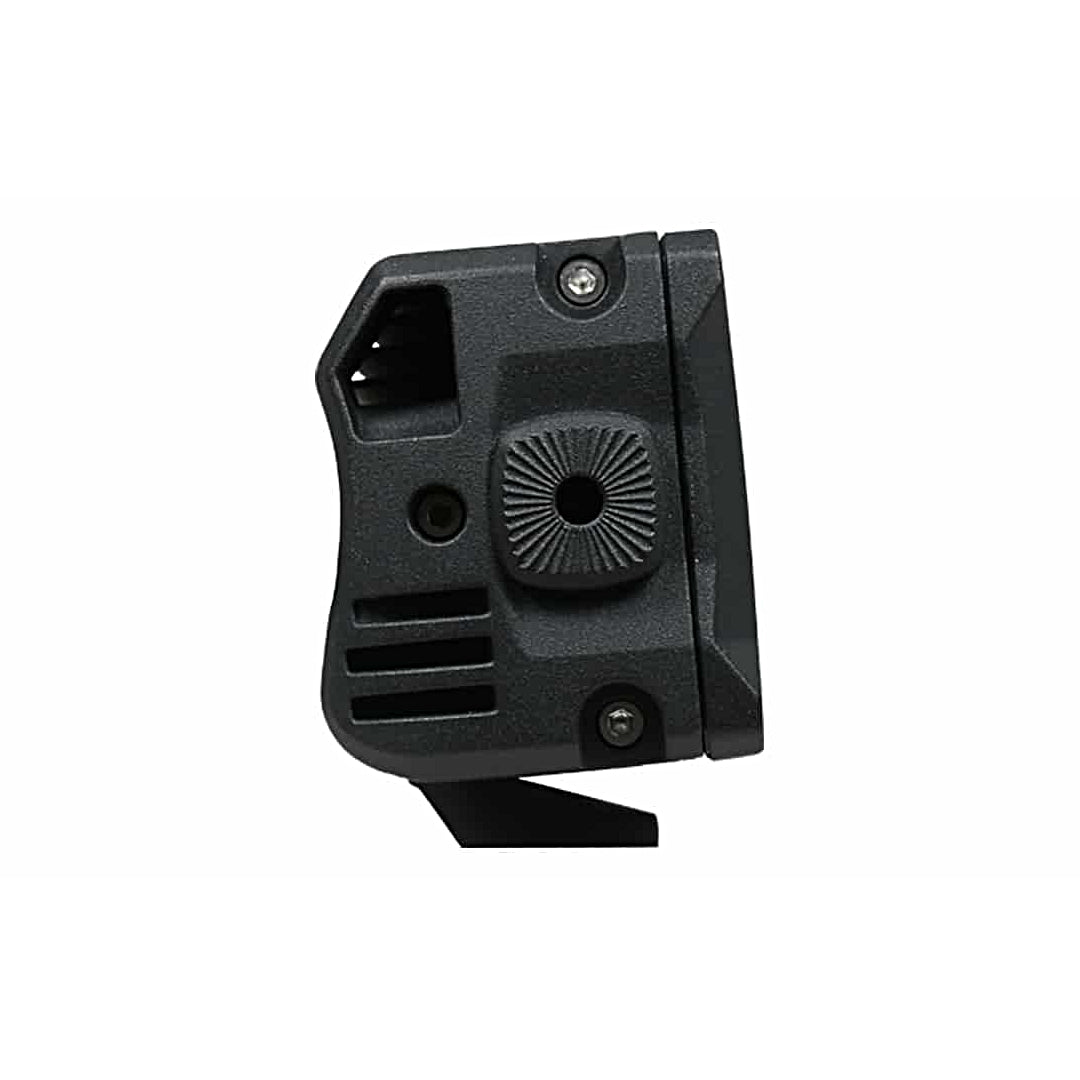

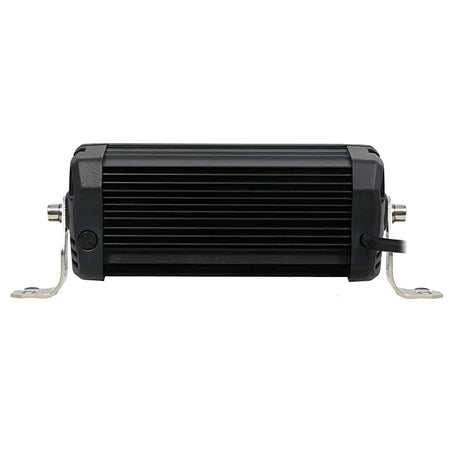

Aluminum Casing with Breather Vent |
|
|

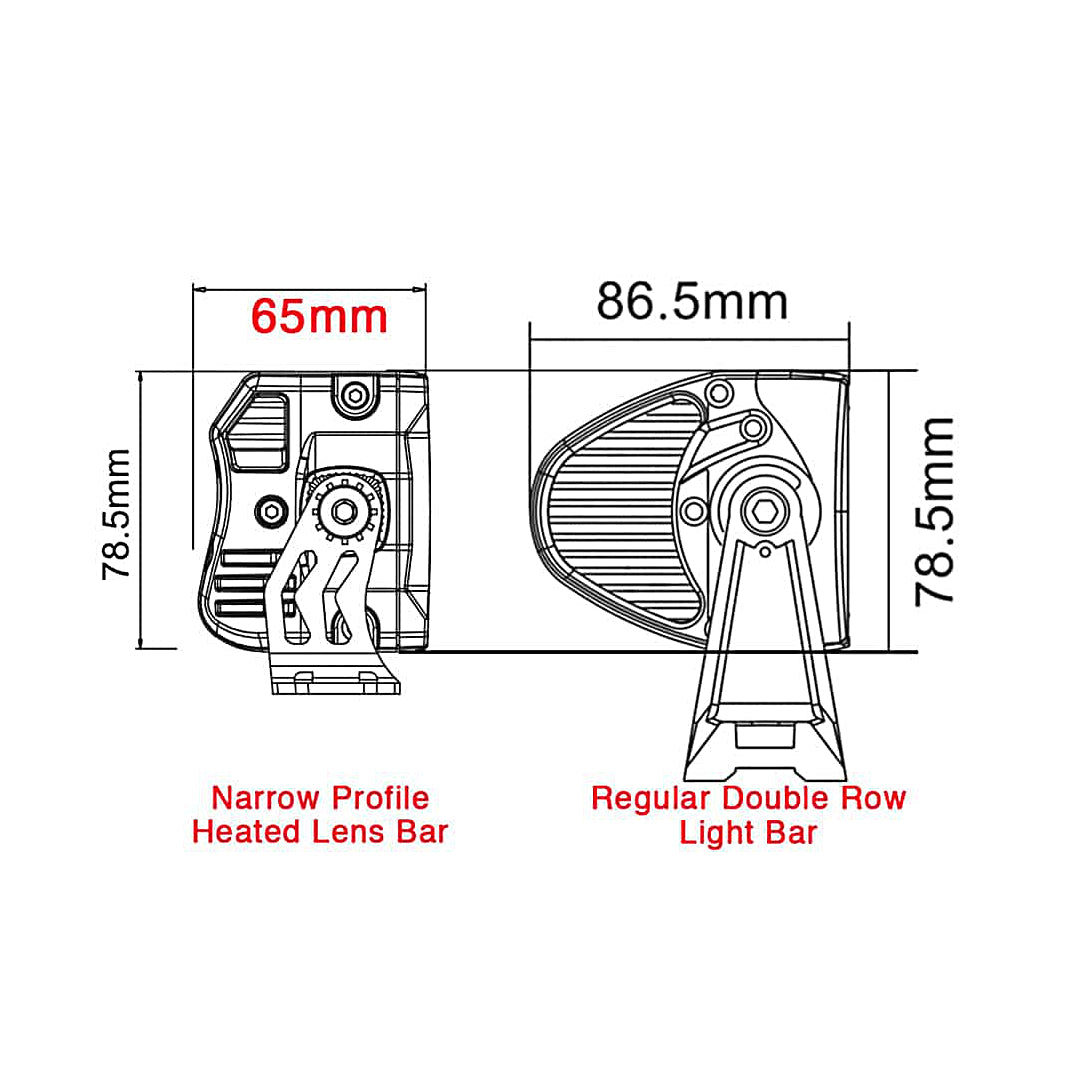

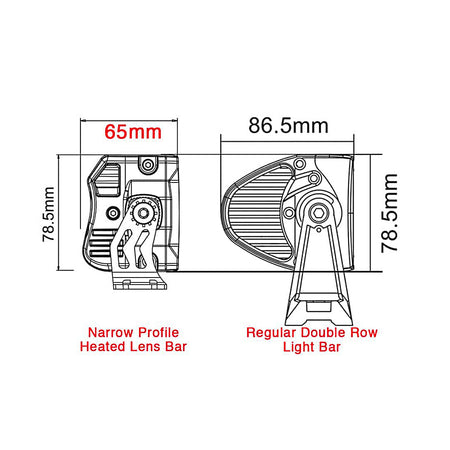

Narrow Profile for More Mounting Options and Comes With 2 Sets of Mounting Brackets |
|
|
Includes Stainless Steel Side Brackets, Black Powder Coated Sliding Brackets (Mount to the Back of Light) and Stainless Steel Hardware |
|
|
Polycarbonate Protective Lens |
|
|

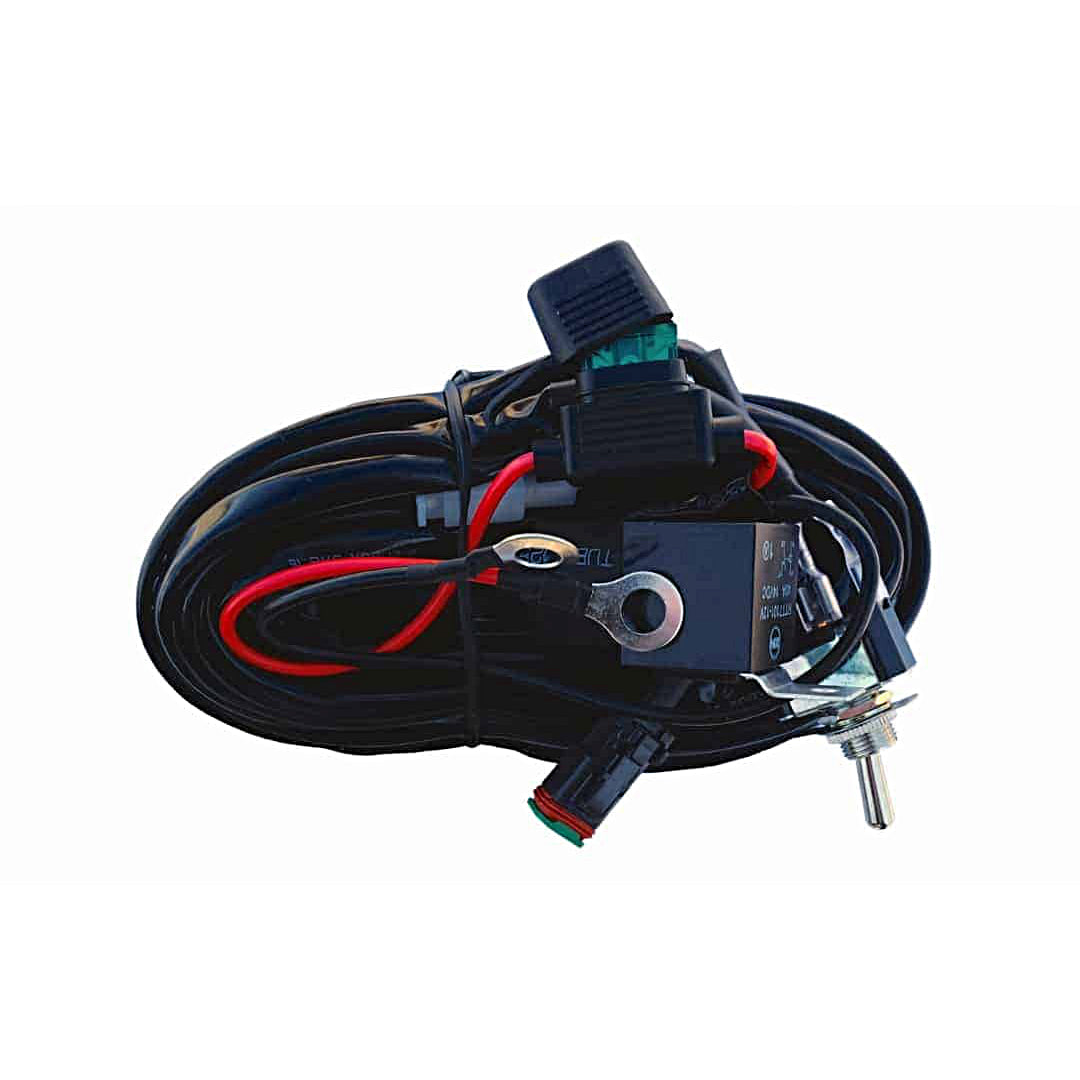

Includes Wiring Harness (Sealed Plug & Play Dual Deutsch Plug Connector, Override Switch, 40 Amp Relay, 30 Amp Fuse, Fuse Holder, 20' of wire) |
|
|
2 Year Warranty |
|
|
30 Day Money Back Guarantee |
|
|
Light Covers Available in Black, Clear, Amber and Blue (not included) |
|
|
*Always check regional rules and regulations regarding the use of auxiliary driving lights for highway use. Northern Light Bars will not be accountable for improper mounting, aiming, wiring or regional restrictions. |
|

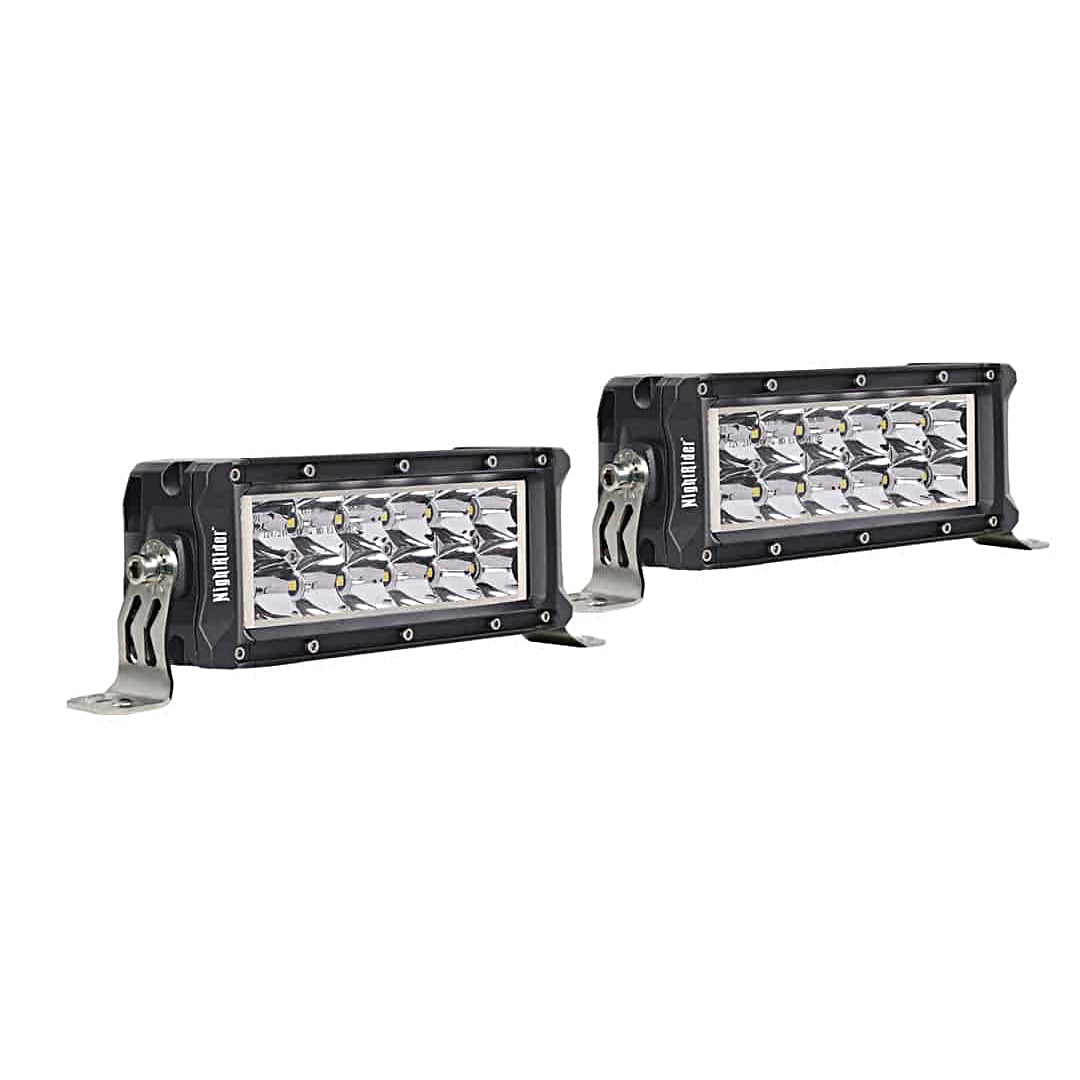

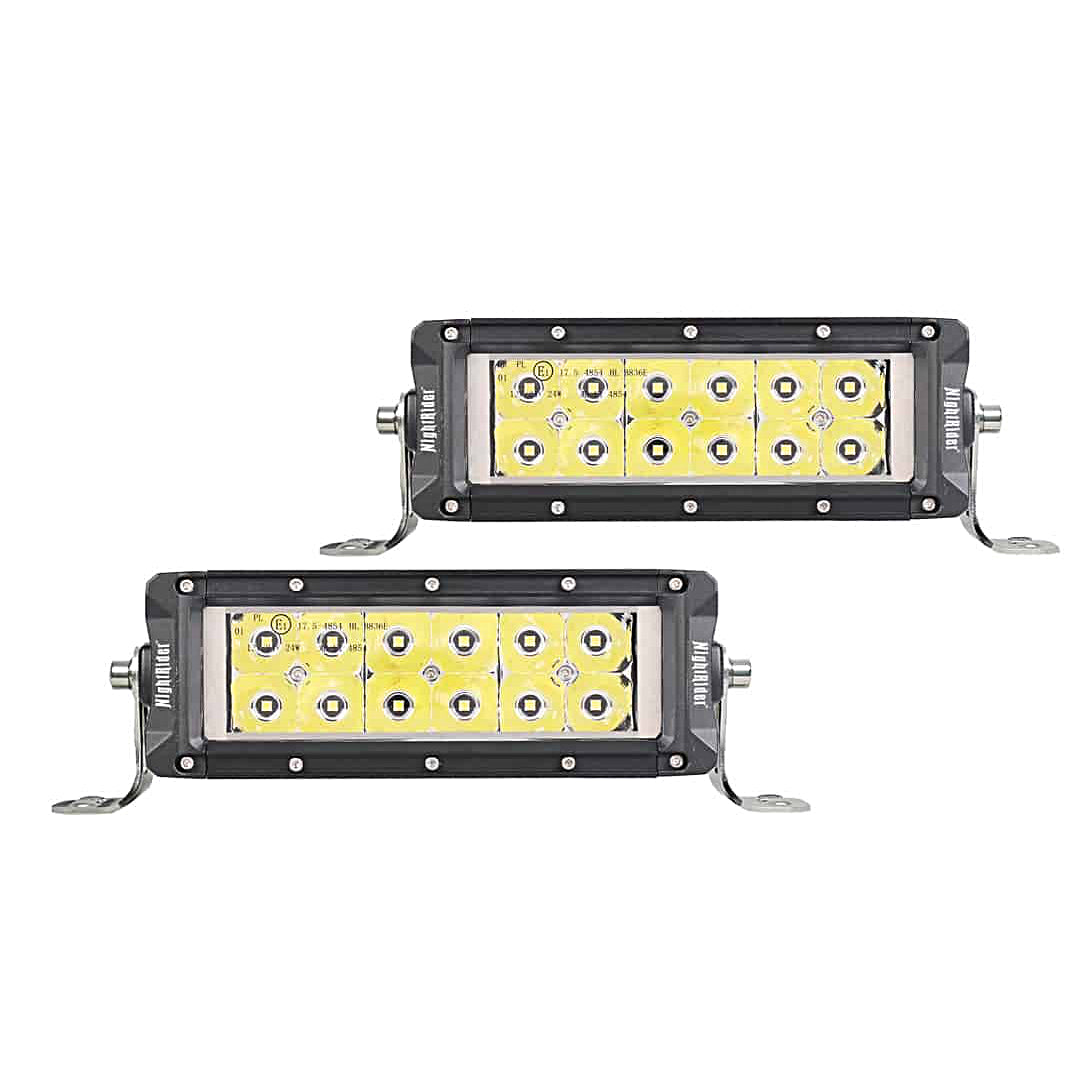

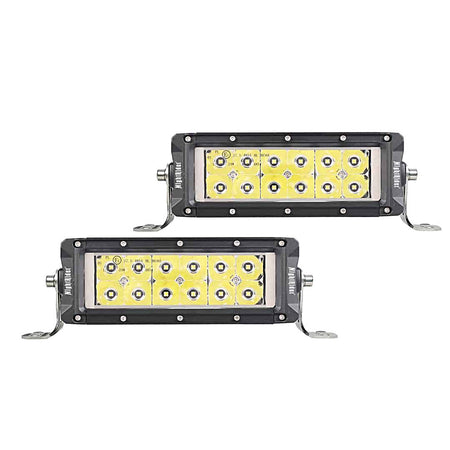

A pair of 6-inch heated LED lights. 4,320 raw lumens per light, ECE E-Mark certified, with a heated lens that reduces snow and ice buildup. Use them as ditch lights, next to a 20" or 12" bar, or as extra driving lights. Ships from U.S. inventory with a 2-year warranty.
A 6" pair is the companion light for a heated bar. Mount one on each A-pillar as ditch lights and you add light exactly where the main bar does not reach: the edges of the lane, the shoulder, the ditch and the outer edges of the plow blade.
The heated lens matters for the same reason as on the main bar. Mounted high on an A-pillar, the lights catch blowing snow and freezing rain. The heating is built into each light and turns on automatically when the light is cold.
ECE E-Mark certified with an ECE R112 auxiliary driving beam; check your state rules for road use. The pair includes a dual-light wiring harness.
- Pair of 6" double-row heated LED lights (N236EM-HL-2)
- 36W and 4,320 raw lumens per light
- Heated lens: automatic, no extra wiring
- ECE E-Mark certified, ECE R112 auxiliary driving beam
- IP67, 10–30V DC, 220 mm long each
- Dual-light wiring harness included
- 2-year warranty and 30-day money-back guarantee
Who it is for: trucks that need compact heated lights, as ditch lights or alongside a bigger bar.
- Ford F-150, F-250, F-350: A-pillar ditch-light brackets (sold separately for most trucks)
- RAM 1500 / 2500 / 3500: A-pillar
- Chevrolet Silverado / GMC Sierra (all sizes): A-pillar
- Jeep Wrangler / Gladiator: A-pillar or roof rack
- Toyota Tacoma / Tundra: A-pillar
- Any flat surface with a suitable bracket
In-stock orders placed through northernlightbars.com ship from U.S. inventory. Pre-orders generally ship within 30 days; pre-order stock moves from our Canada warehouse, which takes 5 to 20+ business days.
In-stock orders are generally processed and shipped within 1–3 business days. Tracking details are sent by email after shipment.
Orders under $99 have a $5 flat-rate shipping charge. Orders over $99 qualify for free shipping within the United States. Shipping Policy
Pre-orders are generally expected to ship within 30 days of the order date. If fulfillment is expected to take longer, the team will contact you.
Eligible orders can be returned within 30 days of purchase. Customers are responsible for return shipping on 30-day returns; warranty shipping is covered by Northern Light Bars USA. All items are covered by a 2-year warranty, subject to the policy terms. Return & Warranty Policy
With the right bracket, yes. Most trucks use an A-pillar ditch-light bracket. Each light comes with mounting brackets and stainless steel hardware.
The pair includes a dual-light wiring harness.
They are not a direct fog light replacement. Many customers use them as extra driving lights; the combo spot and flood beam gives wide fill light.
Yes. This listing is two lights. A single 6" light is also available.
An internal temperature sensor turns the lens heating on automatically when the light’s internal temperature is at or below 20°C (68°F). It reduces at 30°C (86°F) and stops at 40°C (104°F). There is no switch to wire or operate.
